Product Structure
Light Liner
Adhesive(OCA)
Heavy Liner
Thickness
- PSA : 25, 50, 75, 100, 125, 150, 175, 200㎛
- Liner : 75, 100㎛
Features
- Optically Clear
- ITO Compatibility
- Transmittance >99%, Haze <1%
- High Reliability / Good Adhesion
- Void, Acid Free
Technical Data
| Code | Thickness | Peel Strength | Release Force | |
|---|---|---|---|---|
| Light | Heavy | |||
| OC9022D | 25㎛ | 1.40 kg/25mm | 5~20 g/5cm | 30~70 g/5cm |
| OC9052D | 50㎛ | 1.60 kg/25mm | 5~30 g/5cm | 40~90 g/5cm |
| OC9072D | 75㎛ | 1.75 kg/25mm | 10~35 g/5cm | 40~90 g/5cm |
| OC9102D | 100㎛ | 1.90 kg/25mm | 10~35 g/5cm | 40~90 g/5cm |
| OC9122D | 125㎛ | 2.05 kg/25mm | 10~35 g/5cm | 40~90 g/5cm |
| OC9153D | 150㎛ | 2.30 kg/25mm | 10~40 g/5cm | 50~90 g/5cm |
| OC9173D | 175㎛ | 2.45 kg/25mm | 10~40 g/5cm | 50~100 g/5cm |
| OC9204D | 200㎛ | 3.20 kg/25mm | 10~40 g/5cm | 50~100 g/5cm |
| V310 | 100㎛ | 2.00 kg/25mm | 10~40 g/5cm | 45~90 g/5cm |
| V315 | 150㎛ | 2.40 kg/25mm | 15~45 g/5cm | 50~150 g/5cm |
| V320 | 200㎛ | 2.80 kg/25mm | 15~45 g/5cm | 50~150 g/5cm |

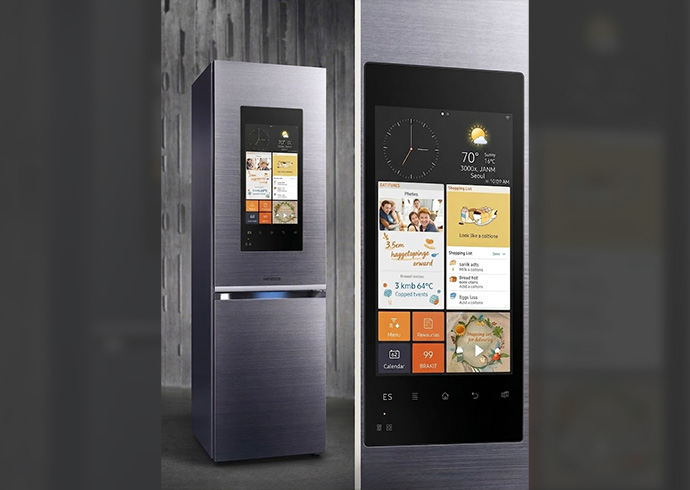

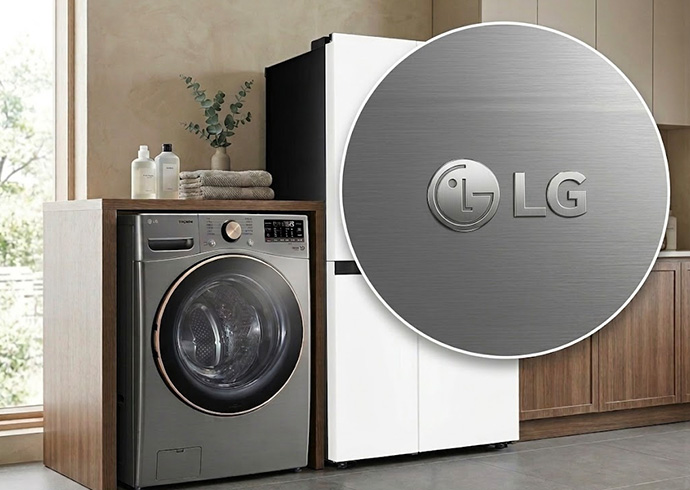

Applications
